Electrodeionization Systems of the UEDI Series

Electrodeionization Systems of the UEDI Series

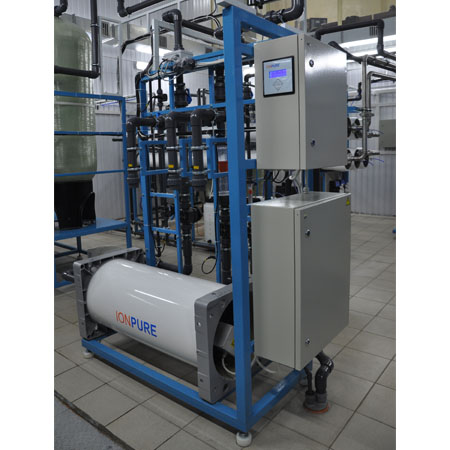

Continuous electrodeionization (EDI) systems are designed for final water polishing after reverse osmosis units. Standard configurations allow production of water meeting the most stringent quality requirements. The specific resistivity of deionized water at the UEDI outlet ranges from 10 to 17 MΩ·cm. These are reliable, fully integrated systems that significantly reduce installation and commissioning costs. No chemical reagents are required during operation. Skid-mounted UEDI units provide deionized water capacity from 0.5 to 100 m³/h at a feed water temperature of 5–45°C. With us, you can purchase an electrodeionization system that fully meets your requirements and expectations, offering an optimal price-to-quality ratio.

The standard package includes the following equipment:

• electrical control panel and power supply
• Ionpure EDI module(s) (or equivalent)
• conductivity sensor — 1 pc
• set of pressure gauges — 1 set
• set of rotameters — 1 set
• PVC piping and shut-off valves
• control valves

Optional equipment:

• reverse osmosis permeate feed pumping station with variable frequency drive
• storage tank with level sensors
• solenoid valve for feed water
• chemical cleaning unit
• “poor permeate” discharge system
• water pretreatment system, including reverse osmosis units

Depending on specific operating conditions and Customer requirements, the equipment configuration may be modified.

Main operating conditions for continuous electrodeionization systems:

• conductivity (including CO₂) < 40 µS/cm
• CO₂ concentration < 3 mg/L
• feed water source — reverse osmosis permeate or equivalent
• feed water temperature: 5–45°C
• chlorine (Cl₂) < 0.02 mg/L
• iron (Fe) < 0.01 mg/L
• manganese (Mn) < 0.01 mg/L
• sulfides (S^-) < 0.01 mg/L
• pH 4–11
• hardness < 20 µg-eq/L (optimal — < 5 µg-eq/L)
• TOC < 0.5 ppm
• silica SiO₂ < 1 mg/L (optimal — < 0.2 mg/L)
• feed water pressure — from 2.0 to 7.0 atm
• ambient air temperature — 5–35°C
• humidity — not more than 70%
• electrical parameters — 380 V, 50 Hz, 1–45 kW
• availability of a drainage system and a storage tank

Upon the Customer’s request, systems with parameters different from those listed in the technical specifications can be manufactured.

You can also purchase components for service maintenance and repair of electrodeionization systems. To place an order, please visit our online store at http://himagregat-aqua.ru/
